Drain channels with central siphon





Drain channels with central siphon


Ask for a product


    PRODUCT CODE: AB050

    BACIC FEATURES

    dimensions 510÷5000 mm x 300÷400 mm
    type of drain channel one-part
    siphion position central
    type of siphon (to choose)
    • vertical (in the photo)

    • vertical for low floors
    • horizontal
    • horizontal for low floors

    Drain channels:

    • Central position of the siphon.
    • Made of AISI 304 stainless steel in form of a hermetic welded channel.
    • Stainless steel 0,8 – 2,0 mm thick.
    • Flat channel with the fall towards the outlet.
    • Side walls equipped with levelling pins.
    • Available in several channel’s edge profiles, depending on the floor finish:
      • standard (in the photo)
      • for vinyl floor
      • for tiled floor
    • Drain outlet ended with siphon and s/s pipe DN100, ∅ external 108 mm.
    • Optional: smooth or anti-slip mesh gratings of different mesh sizes.

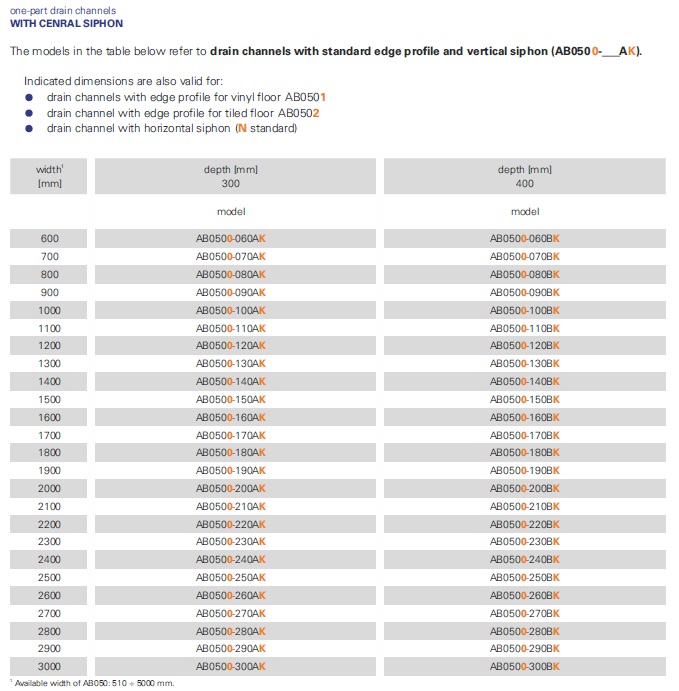

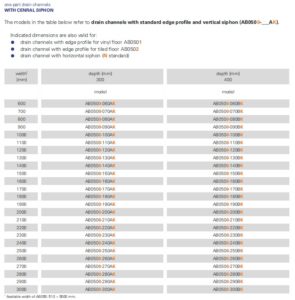

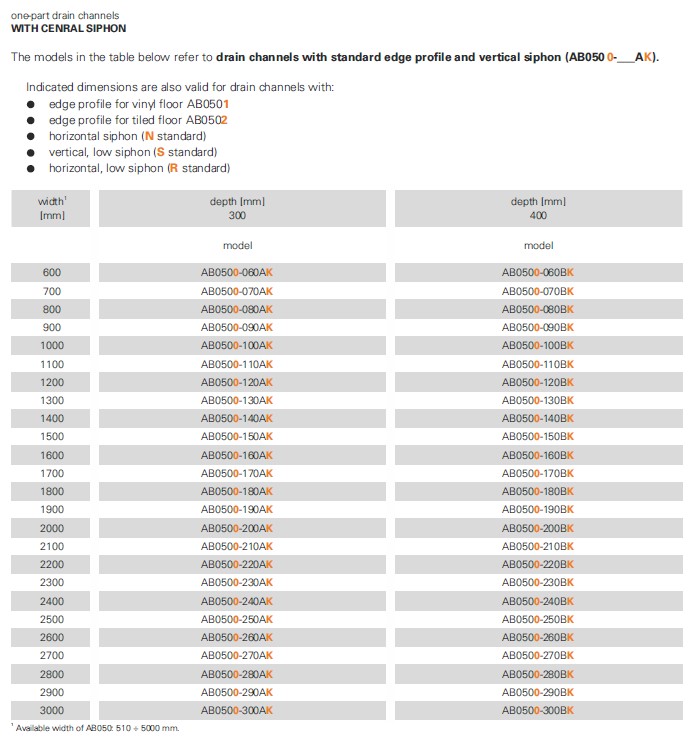

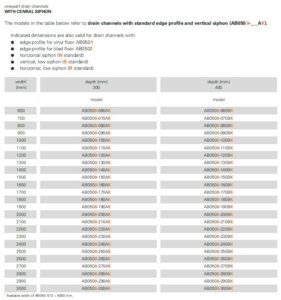

    TABLE OF MODELS
