Drain channels with side siphon





Drain channels with side siphon


Ask for a product


    PRODUCT CODE: SD-AB053

    BASIC FEATURES

    dimensions 510÷2500 mm x 300÷400 mm
    type of drain channel two-part
    siphon position side
    type of siphon (to choose)
    • vertical

    • vertical for low floors

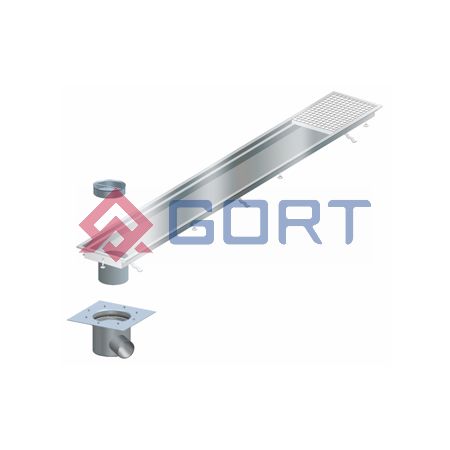

    • horizontal (in the photo)
    • horizontal for low floors

    Drain channels:

    • Side position of the siphon.
    • Made of AISI 304 stainless steel in form of a hermetic welded channel with a flange to settle into the siphon.
    • Stainless steel 0,8 – 2,0 mm thick.
    • Flat channel with the fall towards the outlet.
    • Side walls equipped with levelling pins.
    • Possible adjustment of the channel in 3 levels: height, rotation and slope.
    • Available in several channel’s edge profiles, depending on the floor finish:
      • standard (in the photo)
      • for vinyl floor
      • for tiled floor
    • Recommended for watertight (waterproof) floors.
    • Drain outlet ended with siphon and s/s pipe DN100, ∅ external 108 mm.
    • Optional: smooth or anti-slip mesh gratings of different mesh sizes.

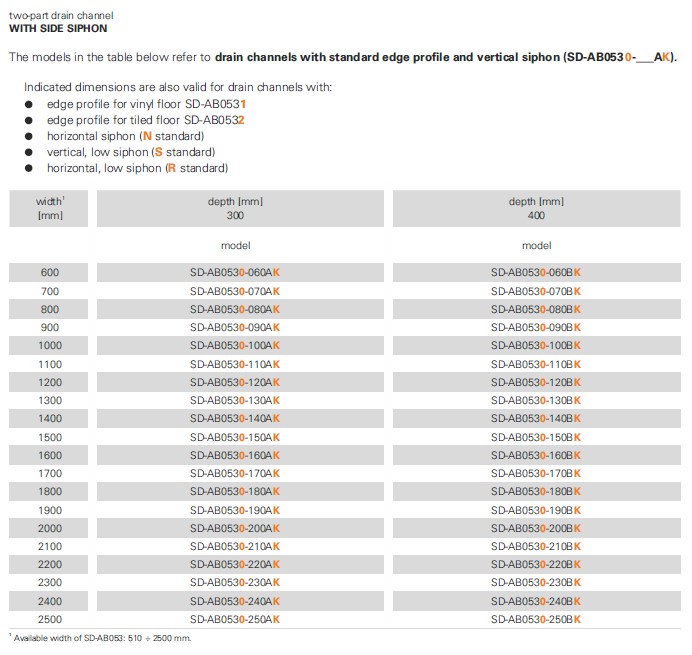

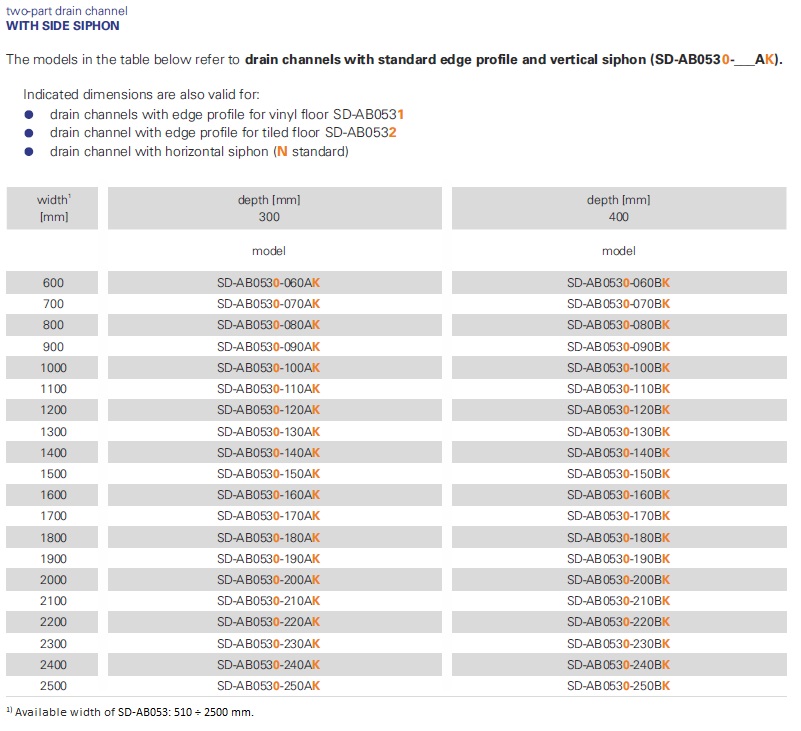

    TABLE OF MODELS
