Electric boiling pan 200 L with autoclave

The range of GORT boiling pans consists of many models. They are to be found in mass catering facilities where soups, rice, sauces, etc. are being cooked. Using the boiling pan in a professional kitchen has a significant impact on saving time by eliminating the use of traditional cooking methods, thus facilitating the organization of work in the kitchen. The capacity of boiling pans is varied to best suit the needs of the facility and the amount of meals to be served. In the assortment of the GORT company, we tried to provide the largest range of boiling pans, so that the appliances have a capacity of 150 to even 500 liters.

The advantage of electric boiling pans is a fact that they do not need specialised installation and ventilation. Choosing electric boiling pan make sure that the facility provides appropriate capacity of electricity.

All GORT boiling pans are made with the utmost care using high quality materials.

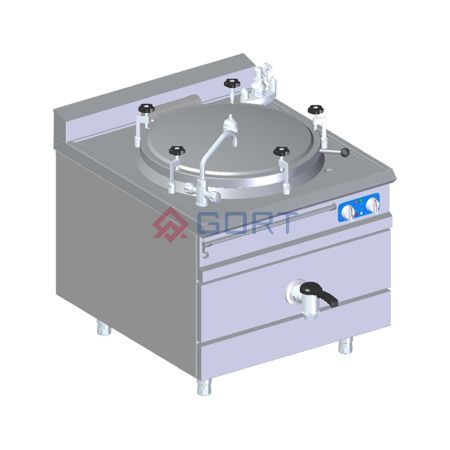

Electric boiling pan 200 L with autoclave
kocioł warzelny manometr
kocioł warzelny zawór spustowy

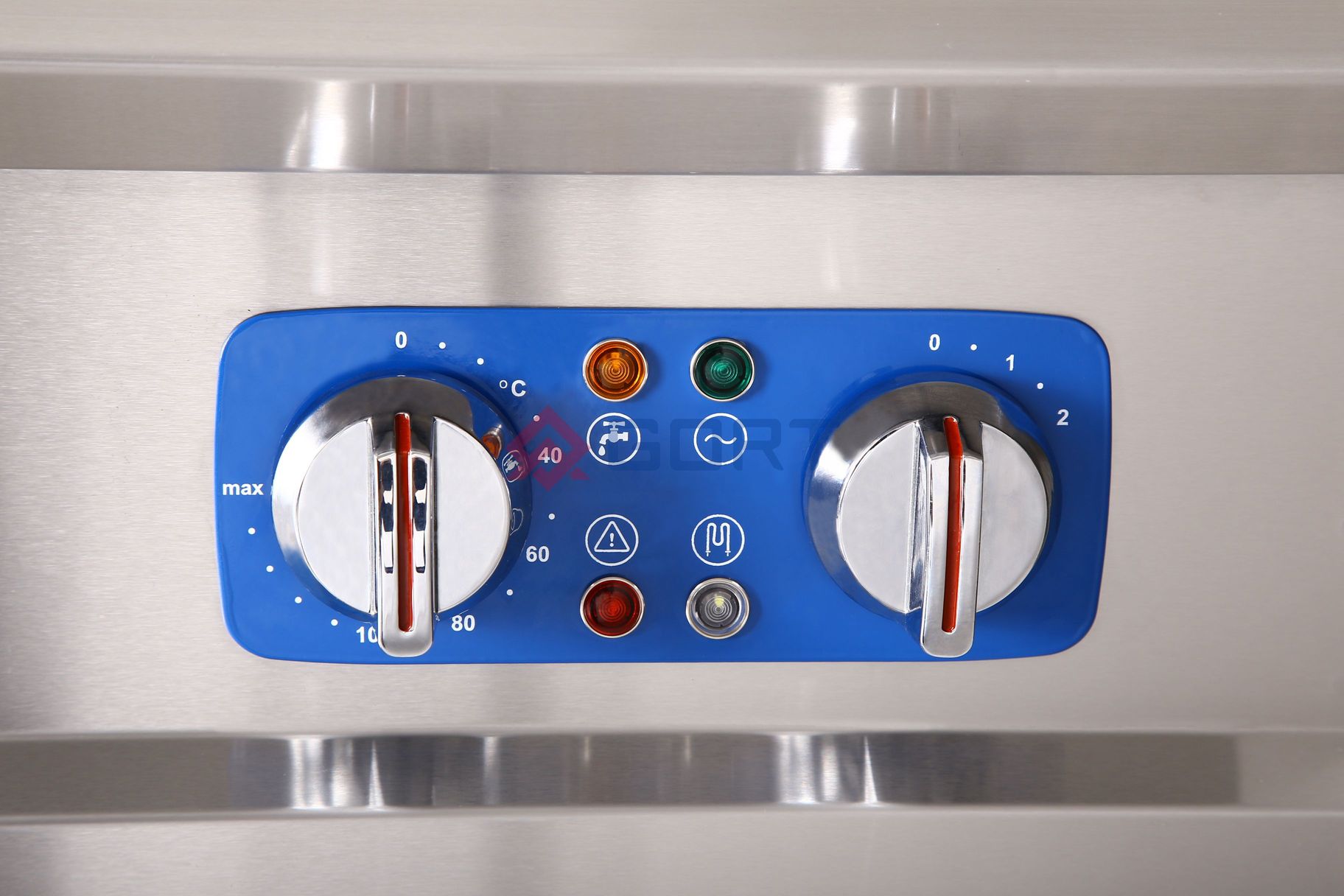

kocioł warzelny elektryczny sterowanie
kocioł warzelny gazowy uchwyt pokrywy


Ask for a product


    PRODUCT CODE: GK512010-100JN

    BASIC FEATURES

    dimensions 1000 x 1150 x 900/1786 mm
    power 27,2 kW
    power supply 400/50 V/Hz
    version autoclave
    capacity 200 L
    jacket filling system* automatic

    Electric boiling pan:

    • AUTOCLAVE: lid gasket, tightening lid clamps, safety valve on lid 0,05 bar.
    • Body made of high quality stainless steel.
    • Automatic filling of the jacket (*manual filling of the jacket also available in the GK112010-100JN).
    • Polished cooking tank bottom, made of AISI 316 stainless steel.
    • Pressed balanced lid.
    • Safety valve, pressure valve with pressure gauge.
    • High quality drain valve 2″.
    • Electronic water level control of the jacket and visual indicator of water alarm level in the jacket.
    • The highest quality of heating elements made of INCOLOY 800.
    • Thermal protection against overheating of boiling pan.
    • Electrochemical protection of water jacket against corrosion.
    • High quality water tap for filling of the cooking tank.
    • Height adjustable round s/s legs.
    • Max. food level marked in the pan.
    • Food temperature adjustment.
    • High chimney.
    • Working pressure in water jacket 0,5bar.
    • Hot and cold water tap connection 2 x G½″.
    • Treated water connection G¾″.
    • Worktop water drain ∅30.
    • International Protection Rating IPX4.
