Two-part floor drains





Two-part floor drains


Ask for a product


    PRODUCT CODE: SD-AB060

    BASIC FEATURES

    dimensions 300÷500 mm x 300÷500 mm
    siphon position central
    type of siphon (to choose)
    • vertical (in the photo)

    • vertical for low floors
    • horizontal
    • horizontal for low floors

    Floor drains:

    • Central position of the siphon.
    • Made of AISI 304 stainless steel in form of a hermetic welded channel with a flange to settle into the siphon.
    • Stainless steel 0,8 – 2,0 mm thick.
    • Flat channel’s bottom.
    • Side walls equipped with levelling pins.
    • Possible adjustment of the channel in 3 levels: height, rotation and slope.
    • Available in several channel’s edge profiles, depending on the floor finish:
      • standard (in the photo)
      • for vinyl floor
      • for tiled floor
    • Recommended for watertight (waterproof) floors.
    • Drain outlet ended with siphon and s/s pipe DN100, ∅ external 108 mm.
    • Optional: smooth or anti-slip mesh gratings of different mesh sizes.

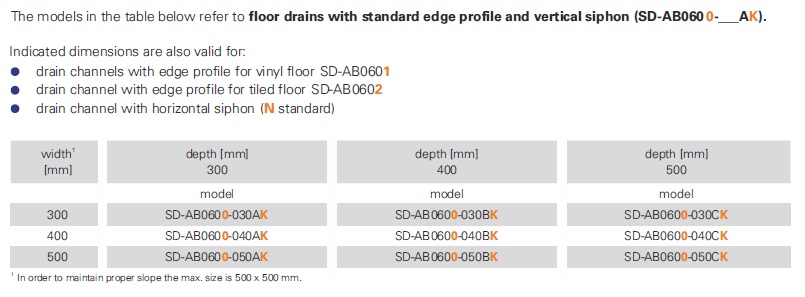

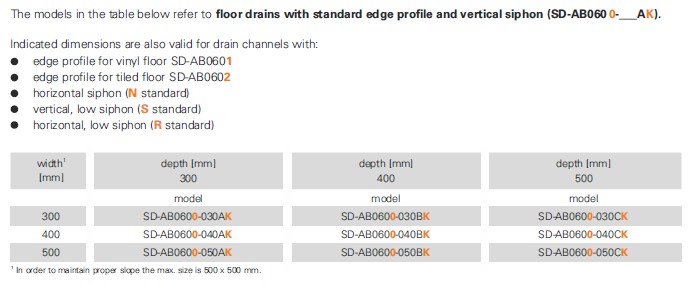

    TABLE OF MODELS
