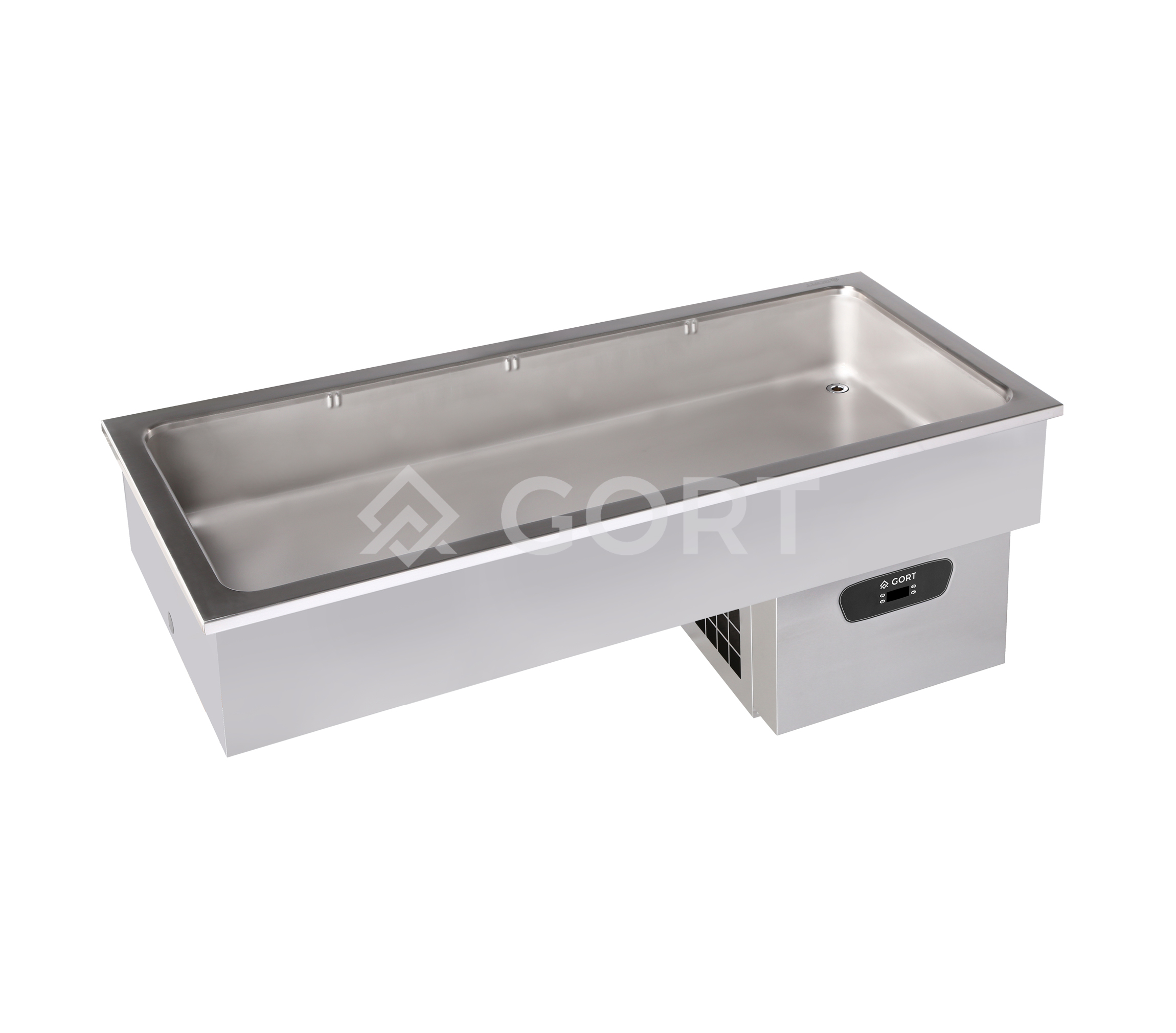

Refrigerated static well DROP-IN, 4 x GN1/1

DROP-IN refrigerated static well has been designed for buffets and any type of distribution systems. The unit allows attractive presentation of the dishes at ideal temperature for maintaining the food tasty and healthy. The possibility to build the equipment into the worktop of the buffet or a self-service line allows you to fully integrate the units with the interior design and architecture.

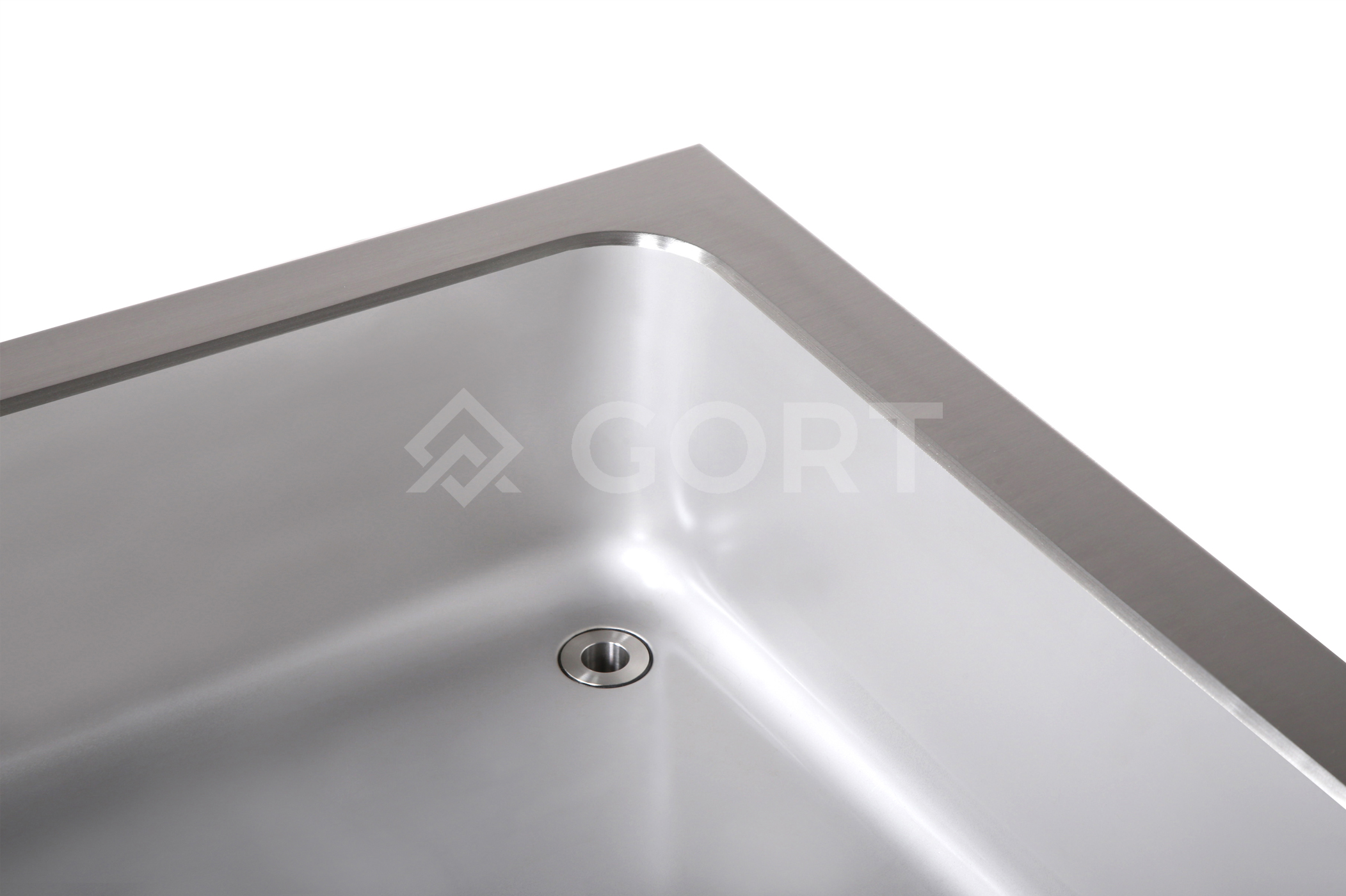

The refrigerated well is made of stainless steel. High hygiene and easy cleaning are ensured by pressed well, rounded inner edges and the fall of well’s bottom towards the outlet.

Available options:
– integrated or remote control panel
– 3 sizes of the unit available: 2xGN1/1, 3xGN1/1 or 4xGN1/1
– 8 compressor compartment ventilation options

Refrigerated static well DROP-IN, 4 x GN1/1
Wanna chłodnicza do zabudowy DROP-IN


Ask for a product

    PRODUCT CODE: DS120_-138DV

    BASIC FEATURES

    external dimensions 1380 x 600 x 635 mm
    power 0,39 kW
    power supply 230 V
    well dimensions 1280 x 510 x 170 mm
    capacity 4 x GN1/1-150 mm
    temperature range +2 ÷ +10oC
    ambient temperature +25oC

    DROP-IN refrigerated static well:

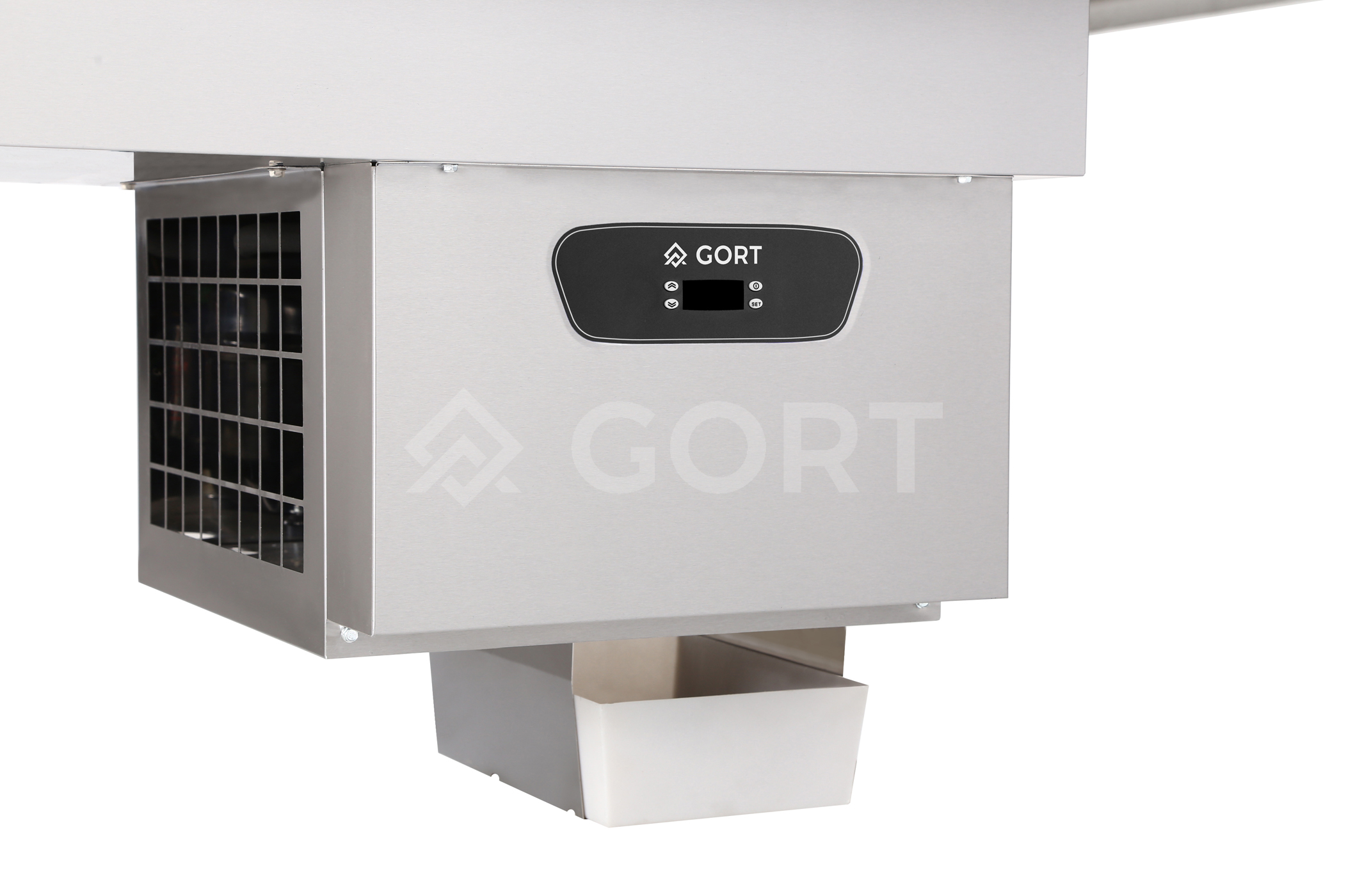

    • Integrated control panel.

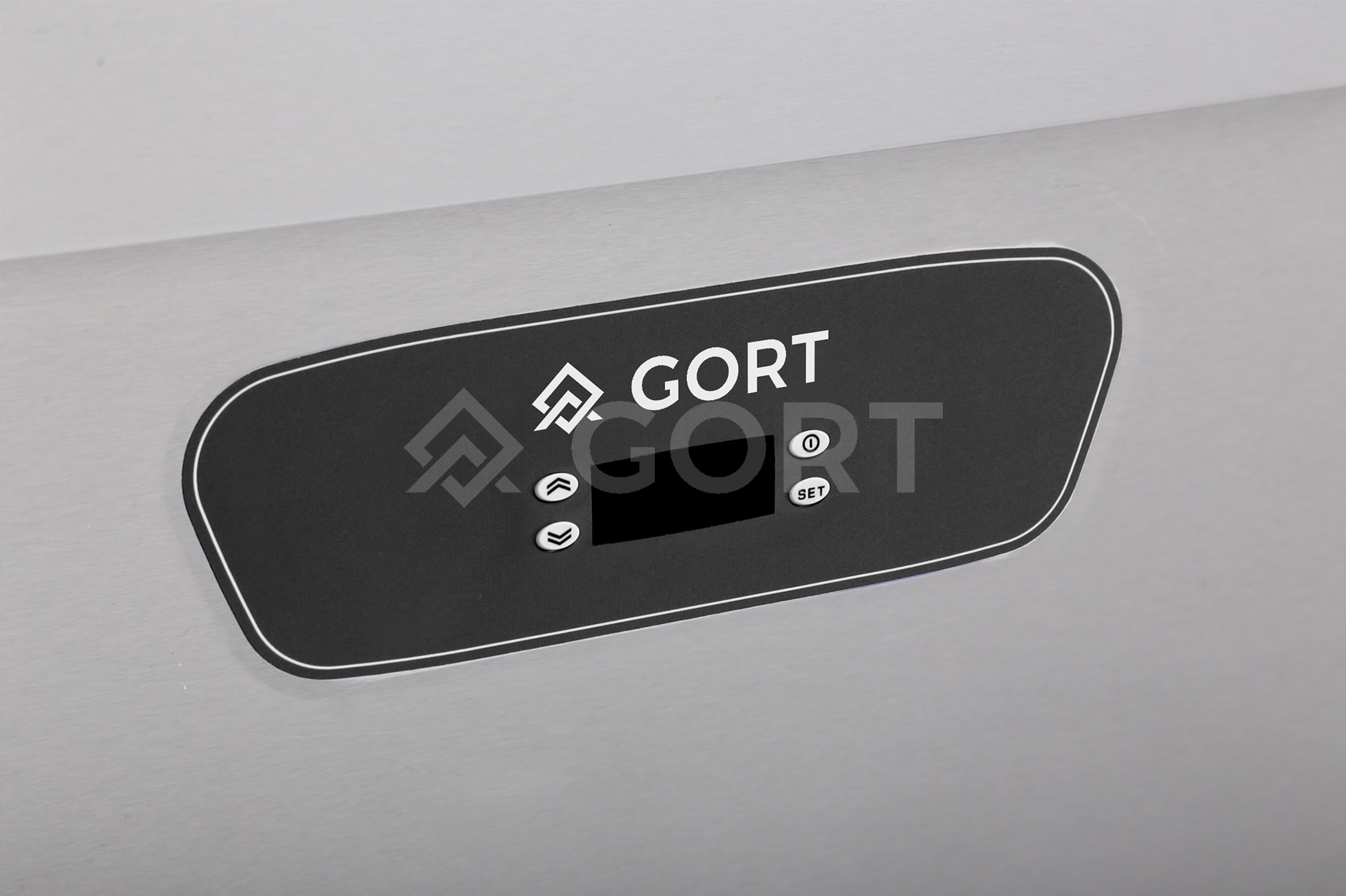

    • Digital temperature control and display.
    • Usable surfaces made of stainless steel.
    • High hygiene and easy cleaning:
      – pressed well, rounded inner edges and corners
      – fall of well’s bottom towards the outlet
      (easier removal of condensate).
    • 8 compressor compartment ventilation options – the choice depends on the front décor panels and selected control panel.
    • Static refrigeration with cooling coil.
    • Ecological refrigerant.
    • Polyurethane insulation.
    • Water drain from the well into condensate container or into sewage system (water outlet G ¾”).
    • Additional accessories:
      • DY00001 support bar 535 mm

    • The offer also includes the versions:

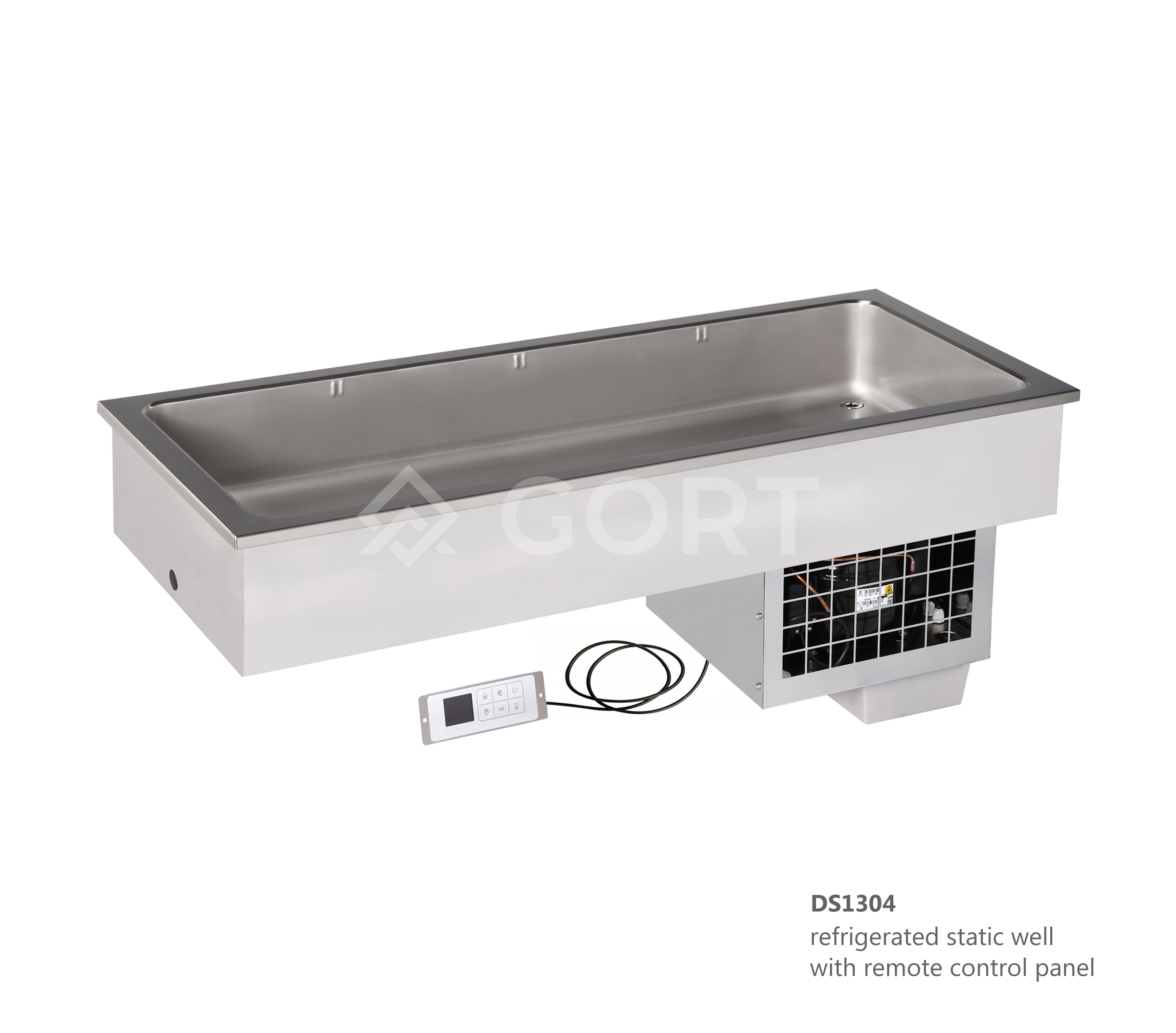

      • with remote control panel DS130_-138DV

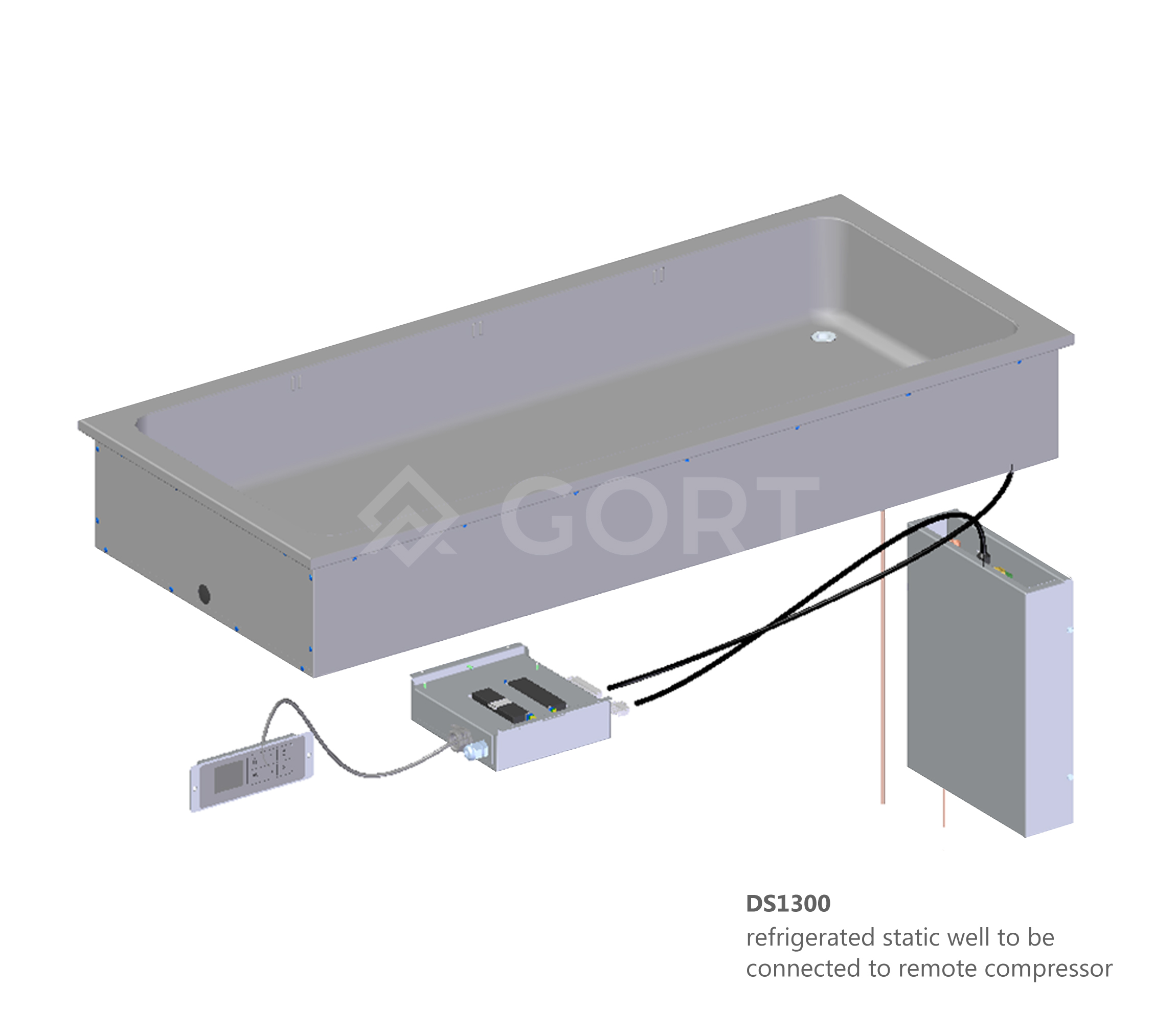

      • to be connected to remote compressor DS1300-138DV.
