Bain marie DROP-IN, 4 x GN1/1

DROP-IN bain marie has been designed for buffets and any type of distribution systems. The unit allows attractive presentation of the dishes at ideal temperature for maintaining the food tasty and healthy. The possibility to build the equipment into the worktop of the buffet or a self-service line allows you to fully integrate the units with the interior design and architecture.

Drop-in bain marie is made of stainless steel. High hygiene and easy cleaning are ensured by pressed well, rounded inner edges and the fall of well’s bottom towards the outlet.
Efficient heating system characterized by fast heating and even temperature distribution, low thermal inertia, low thermal inertia are undeniable advantages of GORT drop-in bain marie.

Available options:
integrated or remote control panel
– 3 sizes of the unit available: 2xGN1/1, 3xGN1/1 and 4xGN1/1.

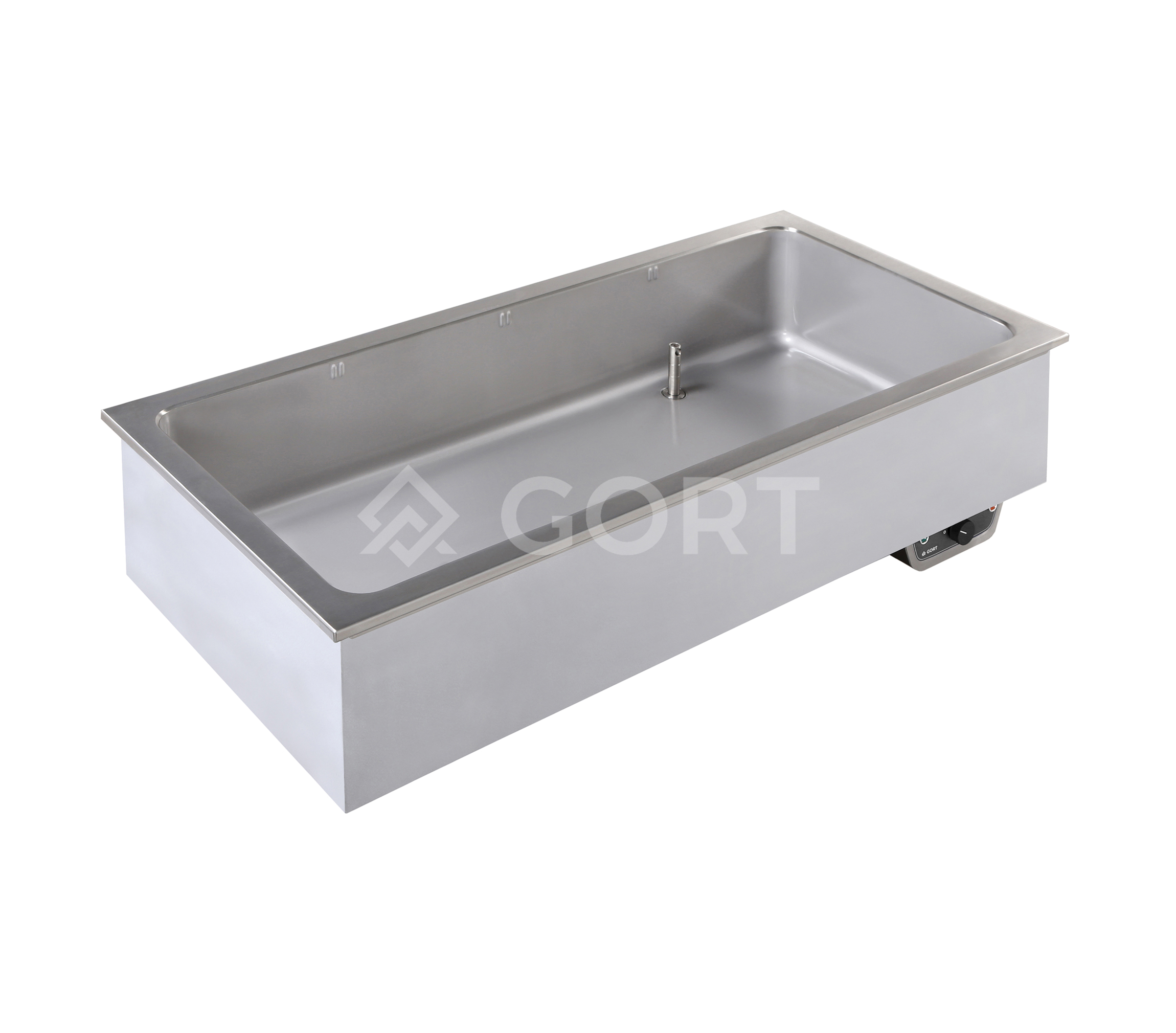

Bain marie DROP-IN, 4 x GN1/1


Ask for a product


    PRODUCT CODE: DB0200-138DV

    BASIC FEATURES

    external dimensions 1380 x 600 x 380 mm
    power 3 kW
    power supply 230 V
    well dimensions 1280 x 510 x 230 mm
    capacity 4 x GN1/1-200 mm
    temperature range +30 ÷ +90oC

    DROP-IN bain marie:

    • Integrated control panel (electromechanical control) with manual water filling.
    • Surfaces made of stainless steel.
    • High hygiene and easy cleaning:
      – pressed well, rounded inner edges and corners
      – fall of well’s bottom towards the outlet
      – heating elements located under the tank.

    • Efficient heating system:
      – fast heating and even temperature distribution
      – low thermal inertia
      – high reliability.
    • Smooth temperature adjustment.

    • Easy water drainage from the well (overflow pipe).

    • Polyurethane insulation.
    • Water drain from the well into sewage system (water outlet G ¾”).

    • Additional accessories:
      • DY00001 support bar 535 mm

    • The offer also includes the versions:

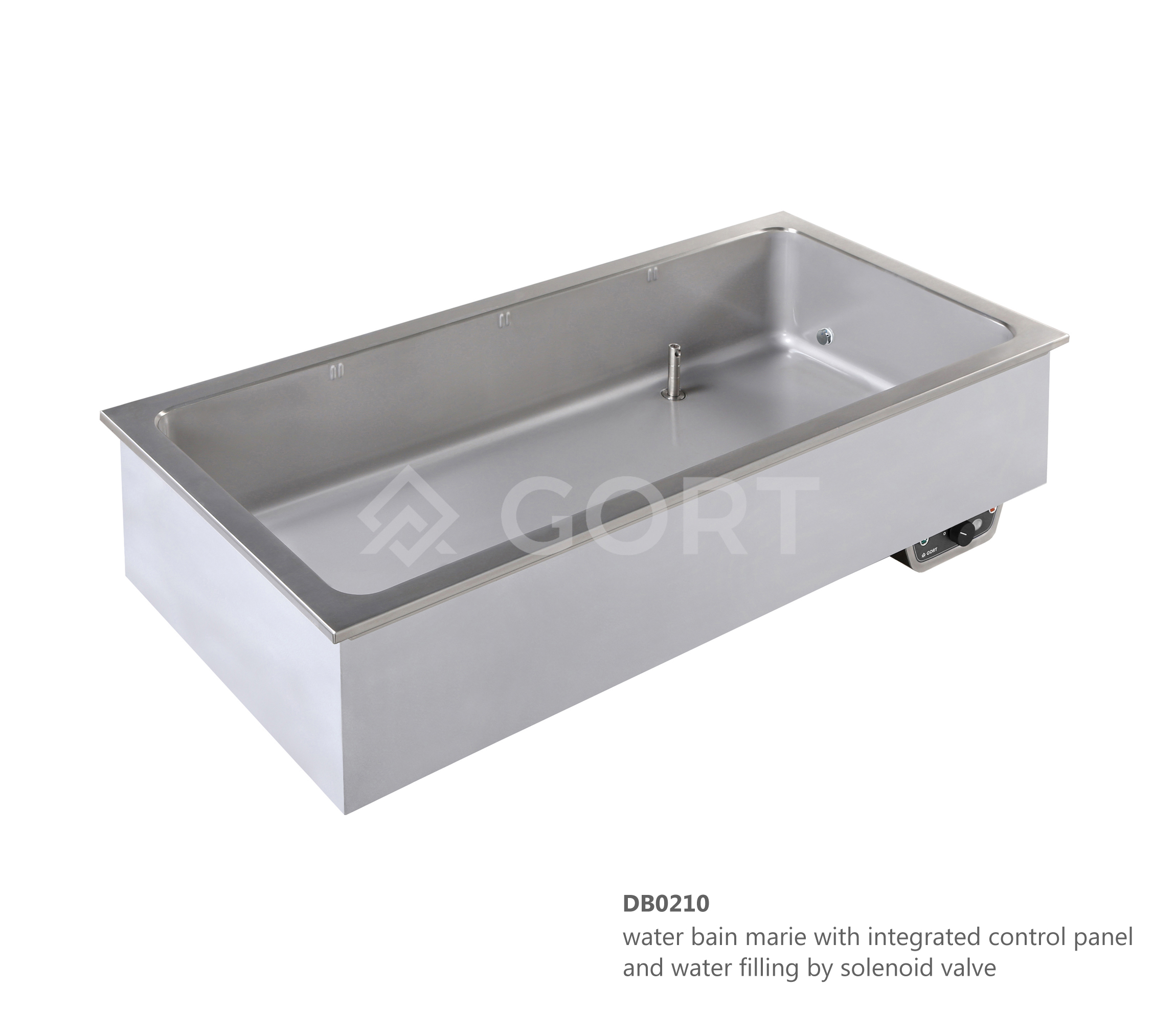

      • with integrated control panel and water filling by solenoid valve DB0210-138DV

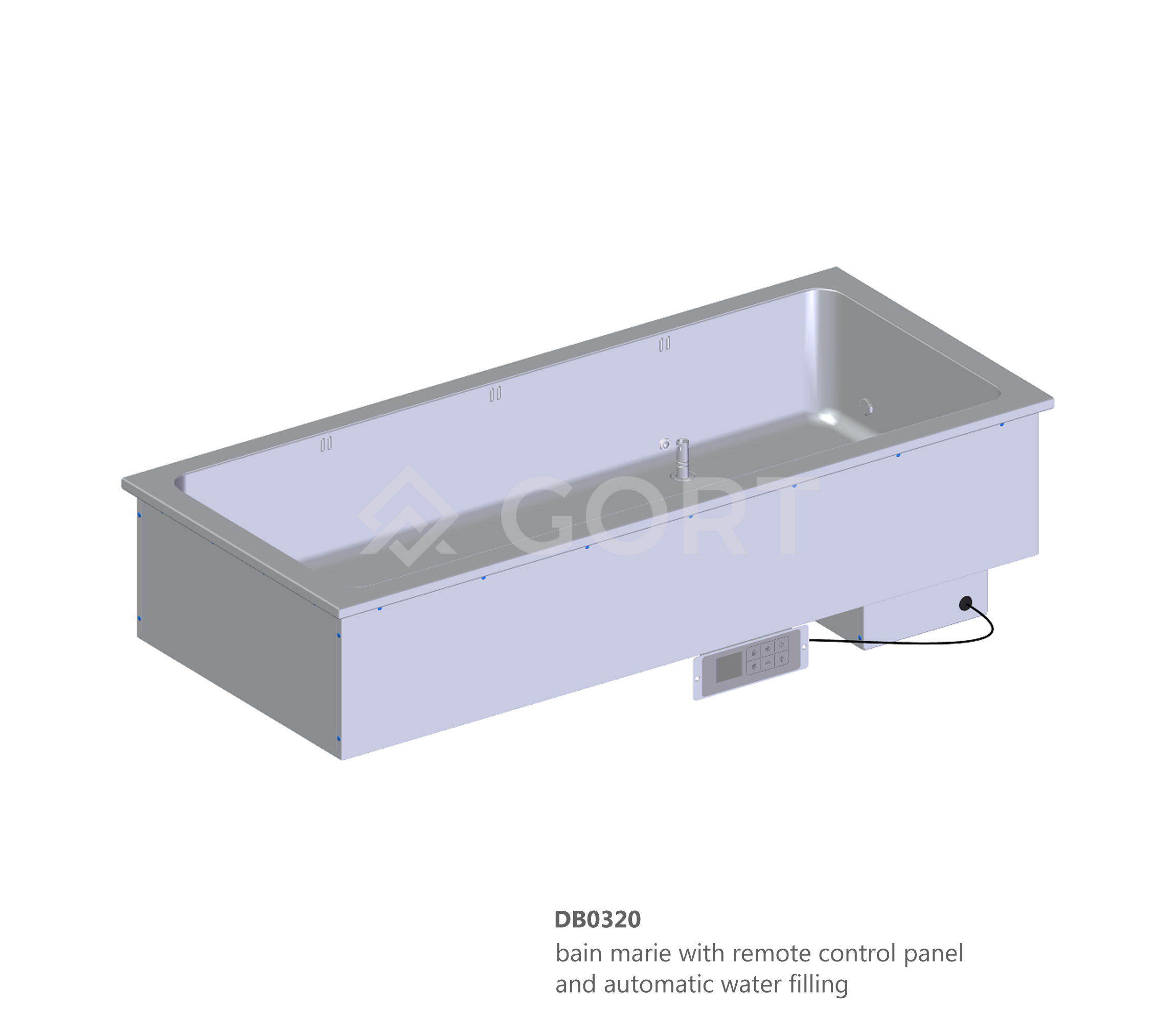

      • with remote control panel, automatic water filling and electronic level control DB0320-138DV
