PRODUCT CODE: DC222_-152EV
BASIC FEATURES
external dimensions | 1520 x 700 x 1440 mm |
power | 1,15 kW |
power supply | 230 V |
well dimensions | 1305 x 509 mm |
capacity | 4 x GN1/1-150 mm |
total display surface | 1,78 m2 |
temperature range | +2 ÷ +10oC |
ambient temperature | +25oC |
DROP-IN refrigerated display:
- Refrigerated display – closed on the customer side (full glass). Sliding doors with self-closing system on the operator side.
- Integrated control panel.
- Digital temperature control and display.
- Usable surfaces made of stainless steel.
- 8 compressor compartment ventilation options – the choice depends on the front décor panels and selected control panel.
- Forced air refrigeration system.
- Tempered safety glass, insulating glass units.
- A set of full bottom inserts for refrigerated well (after their removal, GN1/1-150 mm containers can be used).
- 4 levels of hanging the bottom inserts in the well designed to accept GN containers with depth 20, 40, 65 and 100 mm.
- The unit combines the functions of a typical refrigerated display with flat bottom (after putting the bottom inserts at the highest level) and refrigerated well for beverages (no bottom inserts or inserts placed at the lowest level).
- Adjustment of the tilt angle and the height of glass shelves (regulation every 45 mm).
- LED lighting.
- Ecological refrigerant.
- Polyurethane insulation.
- Water drain from the well into condensate container or into sewage system (water outlet G ¾”).
-
The offer also includes the versions:

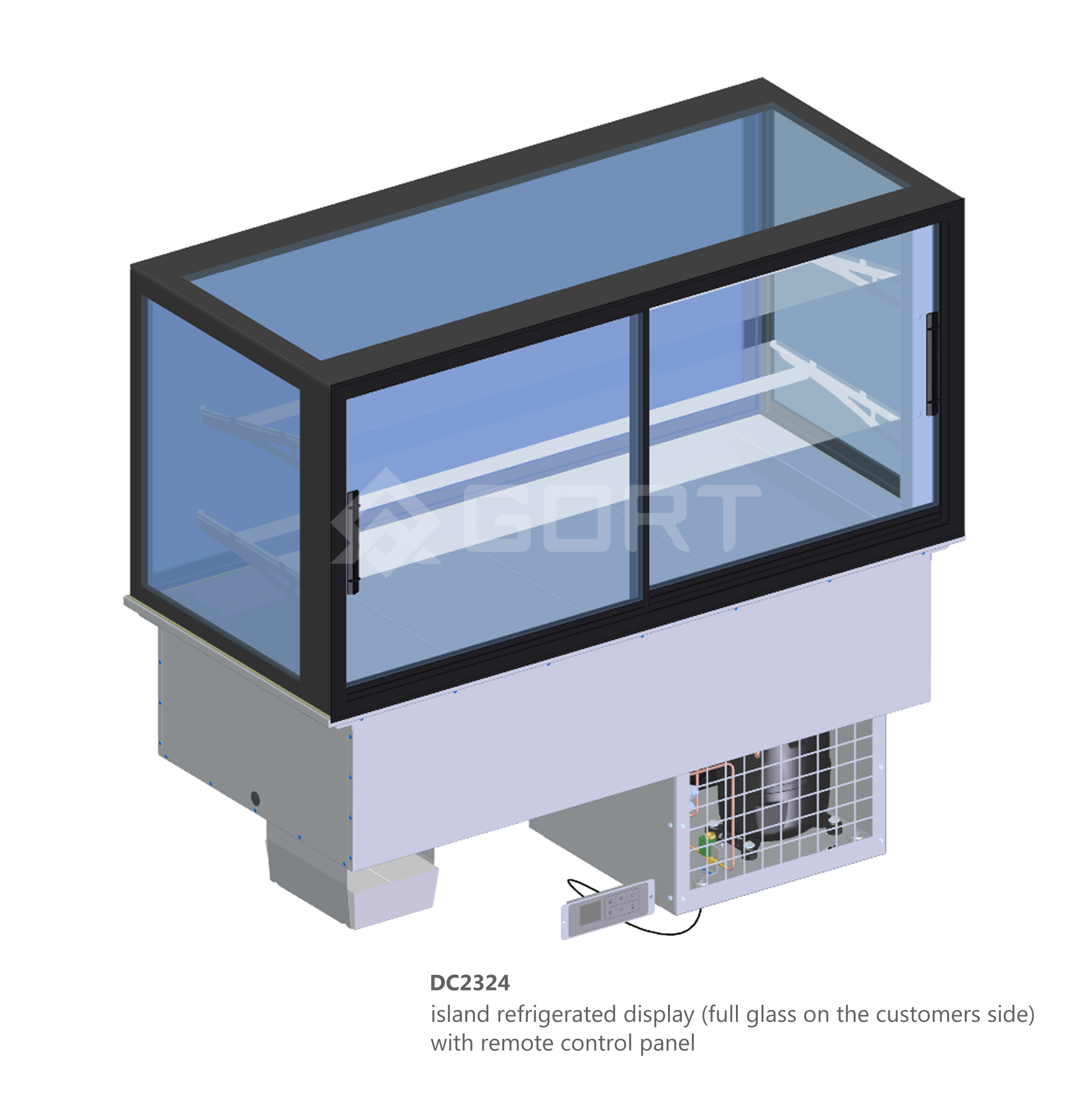

- with remote control DC232_-152EV

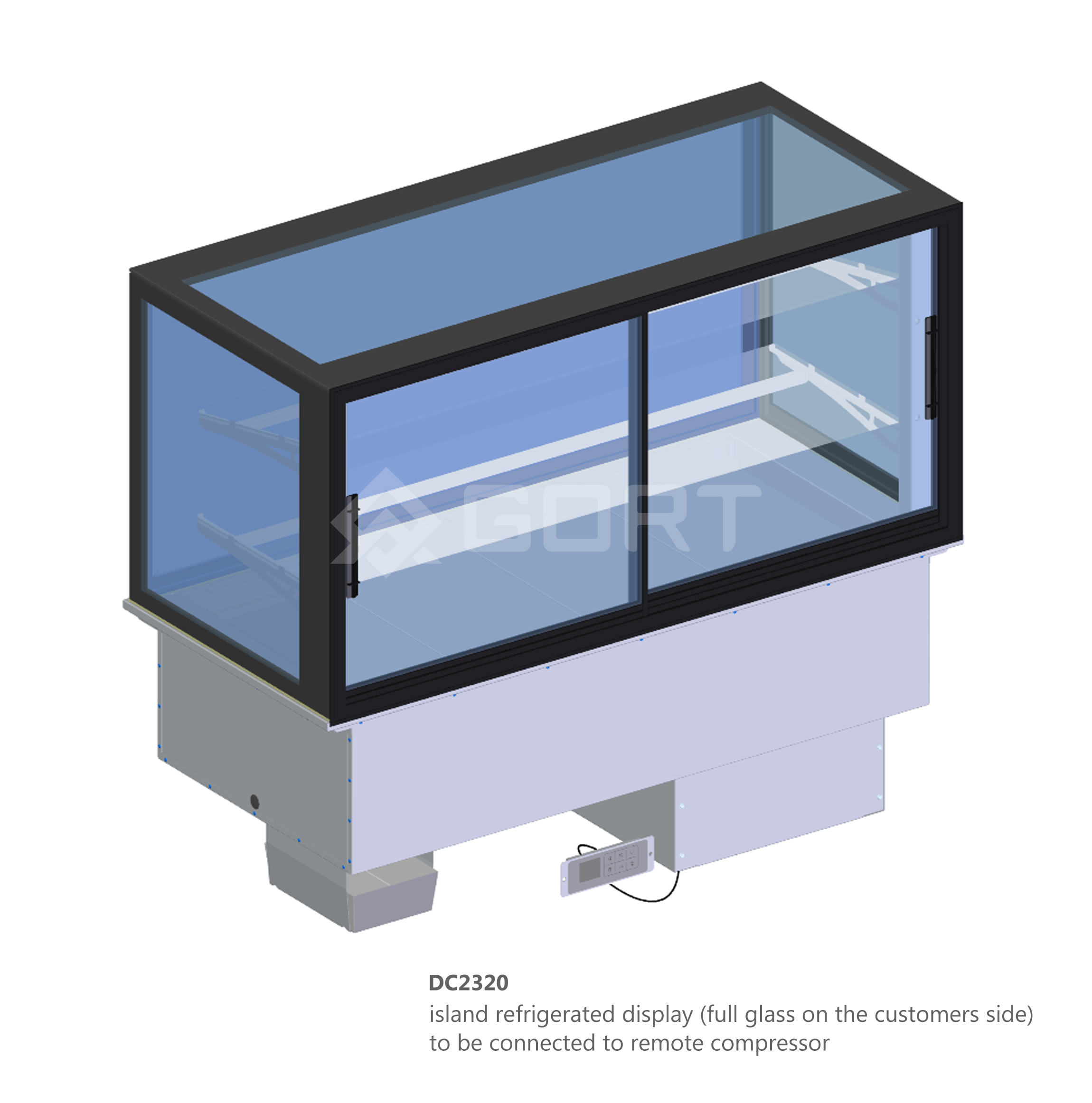

- to be connected to remote compressor DC2320-152EV.
