PRODUCT CODE: GDT3112-042BV
BEASIC FEATURES
| external dimensions | Ø420 x 690 mm |
| min. decorative panels dimensions | Ø402 x 700 mm |
| power | 1,4 kW |
| power supply; type | 230/50; 1N+PE |
| dispenser capacity (number of plates)* | 38 pcs |
| plates diameter | 190 ÷ 280 mm |
| working temperature | +30 ÷ +70oC |

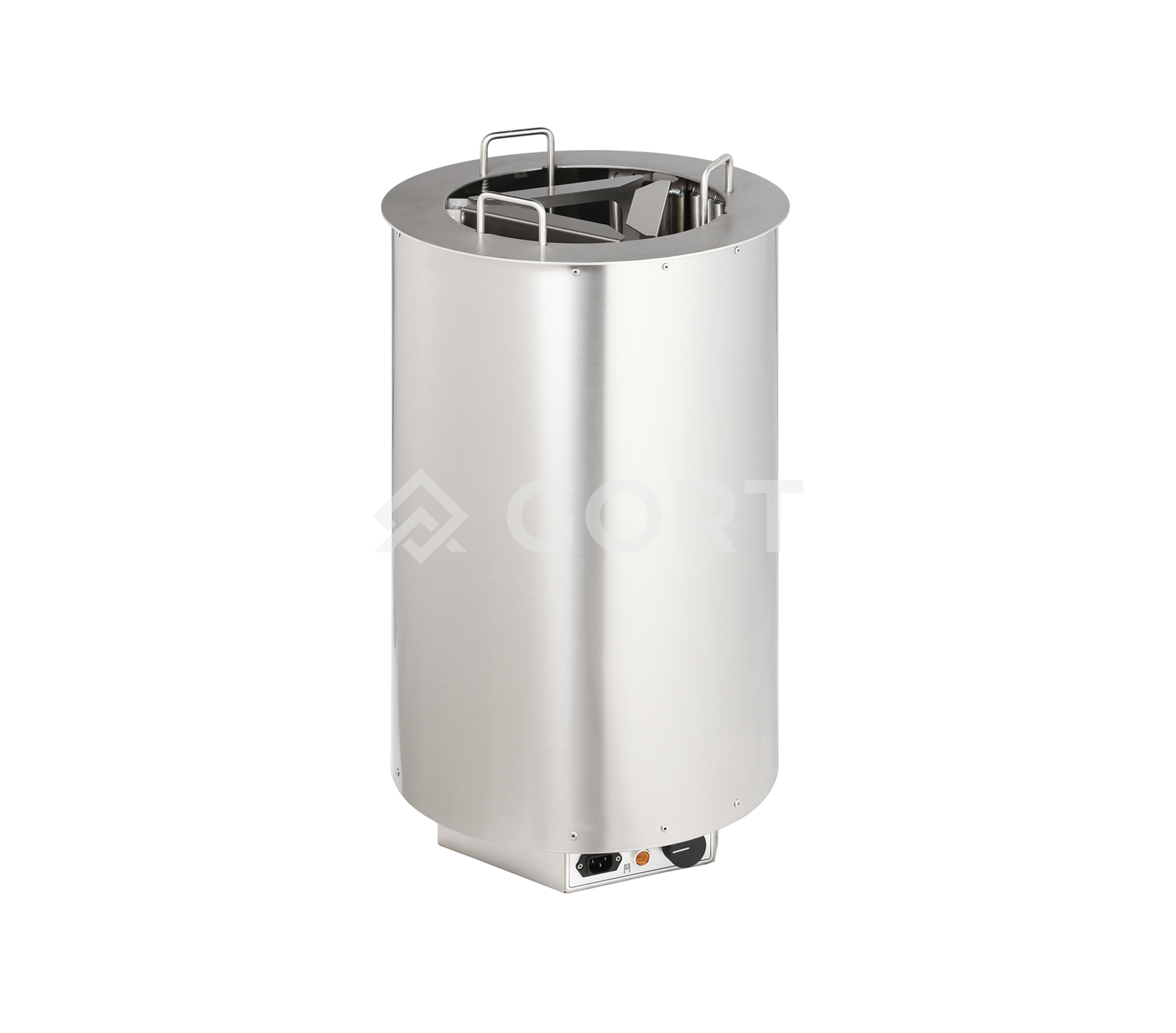

Plate dispenser DROP-IN, heated:
- Heated version.
- Dispenser capacity*: 38 plates (*the capacity of the dispenser is specified for plates of 24 mm height).
- Construction made of high quality stainless steel.
- Insulated casing.
- 5-stage plates diameter regulation: 190, 210, 240, 260, 280 mm.

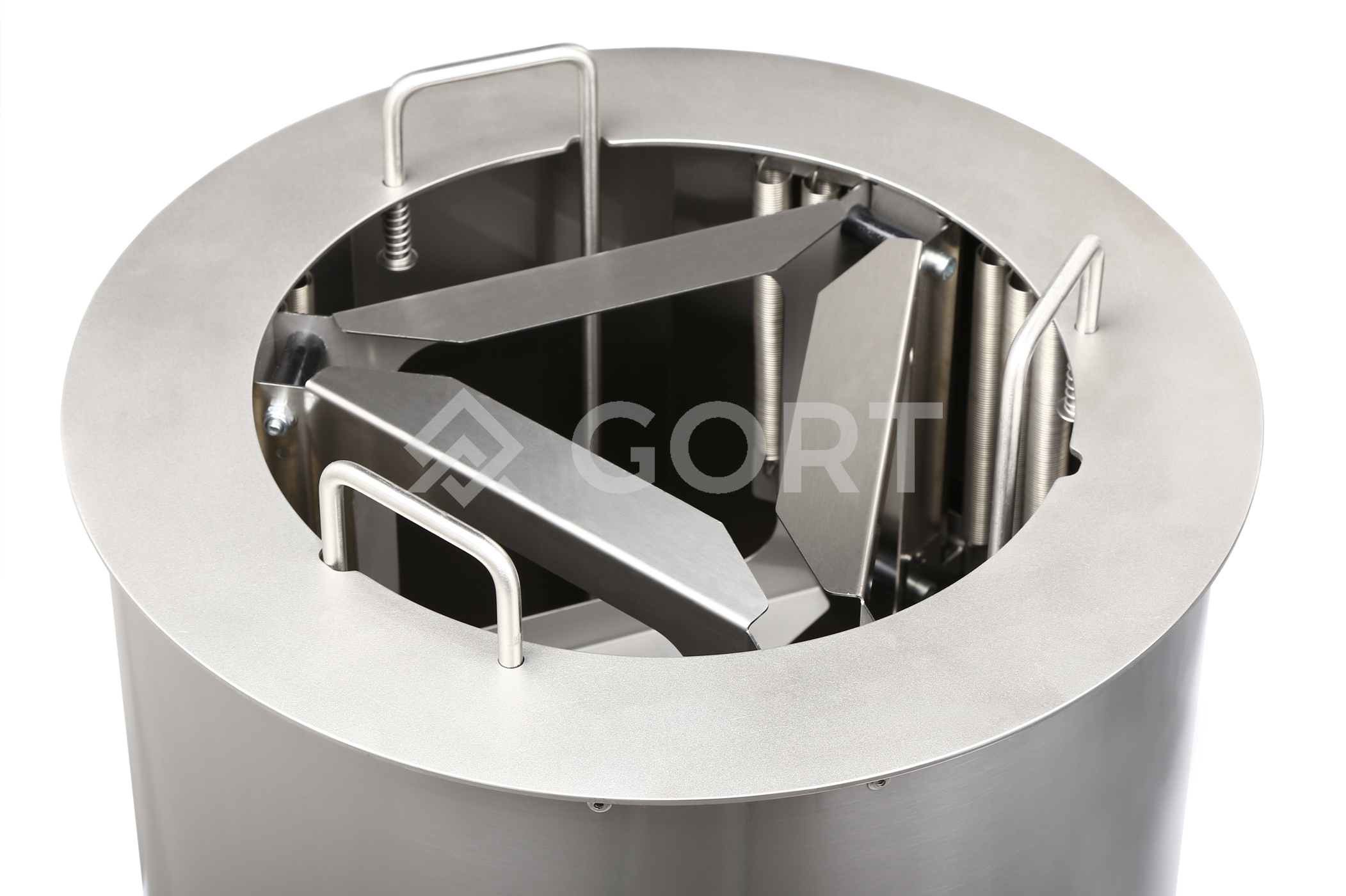

- Removable insert for plates.
- Adjusting the tension force of the dispenser cartridge platform.

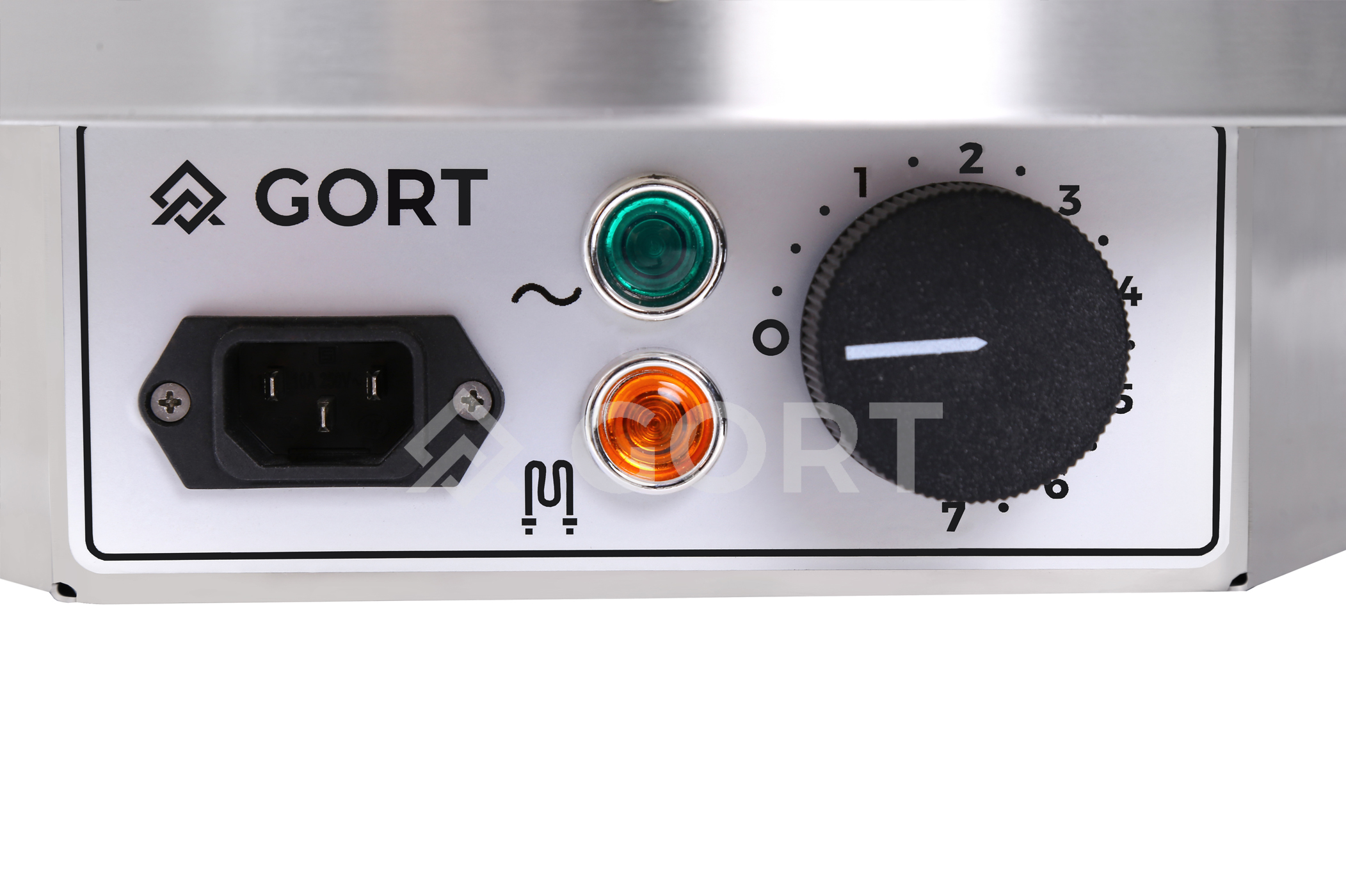

- Indicator lamps.
- Removable 1,5 m long supply wire with a plug.
- Additional accessories:
- UM020001 Plates lid
